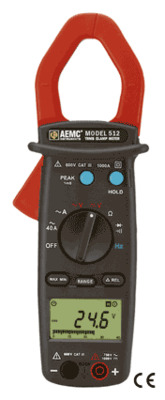

Clamp-On Meter Catalog 2117.68 (TRMS, 1000AAC, 750VAC/1000VDC, Hz, Ohms, Continuity)

Discontinued, replaced by 2117.70 - Model 514

Features:

• Standard size, full function clamp-on meter
• 1000AAC current measurements
• 750VAC/1000VDC volt measurements
• TRMS measurements
• Resistance measurement to 4000?
• Continuity with beeper below 40?
• Frequency measurements from V and A
• Diode test
• 1ms Peak function for fast capture of signals
• Hold function to "freeze" readings
• Large easy-to-read 4000-count display
• 42-segment analog bargraph
• Includes test leads and soft carrying pouch

Applications:

• Commercial, industrial, residential and HVAC troubleshooting
• Power panel, junction box and battery bank monitoring
• AC or DC motor testing
• Power plant troubleshooting
• Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers
