Item # 213920

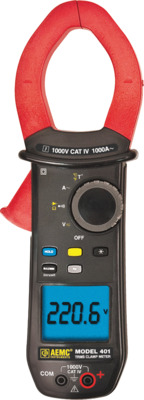

2139.20 AEMC - MODEL 401 CLAMP-ON METER DISCONTINUED
Item # 213920
2139.20 AEMC - MODEL 401 CLAMP-ON METER DISCONTINUED
- UM : EA
- Weight: 9.0000
Clamp-on Meter Catalog 2139.20 (TRMS, 1000V AC/DC, 1000A AC, Ohms, Continuity, Temperature)
DISCONTINUED, REPLACED BY 2139.21
Description: The TRMS Clamp-on Meter Catalog 2139.20 provides a new standard for safety and measurement capability not available in any other clamp meter sold today. Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments. It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Catalog 2139.20 offers several unequaled functions.
Features:- 1000V CAT IV Rated
- UL 94 flame retardant self-extinguishing
- IP54 Rated
- 10,000-count blue electroluminescent backlit display
- Measures up to 1000V AC (1400V peak), 1000V DC and AC+DC with resolution to 10mV
- Measures up to 1000A AC
- Tracks Min/Max and peak values
- Measures frequency to 20kHz with 0.1Hz
- Measures temperature in °F or °C using a K-type Thermocouple
- True InRush® current measurement with 1mS capture
- Jaw opening up to 1.89"
- Leads are constructed with a flexible silicone material
Applications:
- General purpose electrical troubleshooting
- Motor start up analysis
- Voltage troubleshooting
- Bond and continuity checking
- Temperature analysis
Specifications
