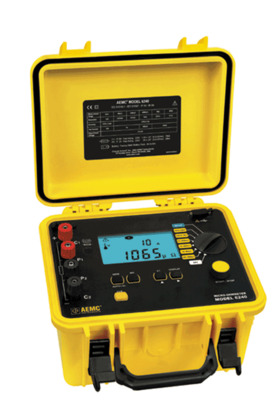

Resistance measurements are automatically calculated from 1µΩ to 400Ω with resolutions down to 1µΩ. The Catalog 2129.80 has selectable test currents of 10A, 1A, 100mA and 10mA and includes a polarity reversal function.

The Catalog 2129.80 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC.

The DataView^® Software included allows you to configure the instrument, temperature compensate the test results, as well as, store data and print reports

Features:

• Measures from 1µΩ to 400Ω
• Test current selection from 10mA to 10A
• Manual temperature compensation (with DataView^® software)
• Front panel polarity reverse function
• Stores up to 99 test results
• Operator safety by automatic discharge of residual charge on the equipment under test
• Auto store of multiple test results
• Internal, rechargeable batteries conduct up to 850, 10A tests
• Built-in battery pack recharger recharges the batteries by connecting to the AC line using a standard line cord
• 4-Wire measurement with automatic compensation of undesirable voltages and lead resistance
• Large multi-function backlit display
• Direct display of the measurement with its units, range and test current
• Rugged, sealed case

Applications:

• Ground connections and continuity measurement
• Resistance measurements on motors and small transformers
• Contact resistance measurements on breakers and switches
• Component measurement
• Electrical cable resistance measurement
• Mechanical bond tests
• Wire to terminal connections
• Aircraft and rail bonds
