Item # 1350

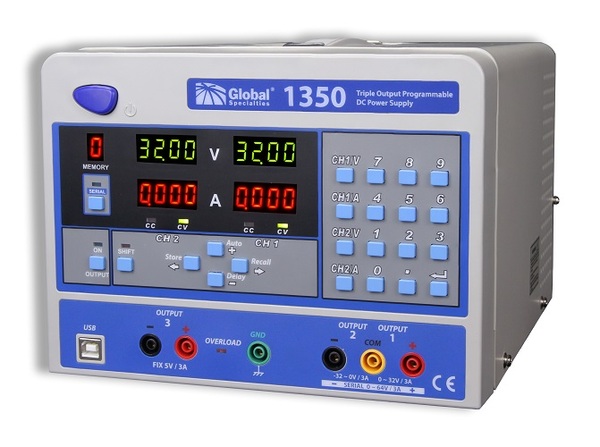

1350 GLOBAL SPECIALTIES TRIPLE OUTPUT DC POWER SUPPLY
Click image to enlarge
Item # 1350
1350 GLOBAL SPECIALTIES TRIPLE OUTPUT DC POWER SUPPLY
- UM : EA
- Weight: 18.4000
Description: The 1350 has a programmable control via USB interface and microprocessor controlled circuits. The voltage and current are controlled by a 12-bit D/A converter with resolutions as high as 10 mV and 1 mA respectively. The digitized system enables you to input all data via computer keyboard. It is a safe and reliable instrument with protections against over voltage and currents are completely regulated by the software.
Features:
- Two variable supplies: 0-32 V, 0-3 A
- Series tracking mode enabling 0~64 V, 0~3 A operation
- One fixed supply: 5V, 3A
- Fully programmable control, data storage, data recall, and built in USB interface
- 4 separate LED displays for voltage and current for both variable outputs
- High stability with less drift
- Automatic program execution at preset time
- Floating outputs
- Input voltage selection on rear side (120 VAC/ 240 VAC)
Specifications
×
