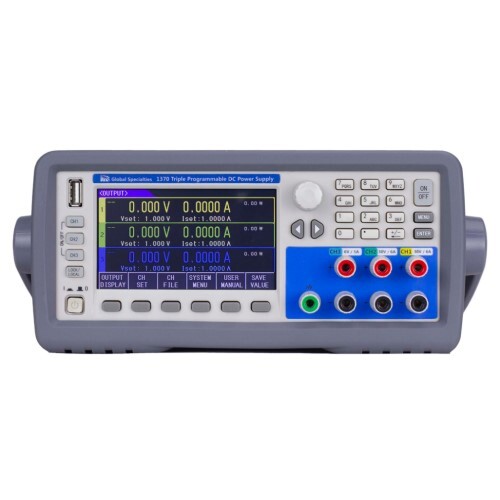

1370 - TRIPLE OUTPUT PROGRAMMABLE DC POWER SUPPLY: 0-30V, 0-6A (2) & 6V, 5A

Description: The Performance Series (Models 1368, 1369, 1370) are linear triple output power supplies. They have fully programmable isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. Each model offers a different variable output voltage and current on two channels. However, the third channel is rated at 6 volts, 5 amps. These power supplies offer tracking mode with user-configurable ratios between channels.

Features:

• Three independent and fully isolated channels
• Series and parallel modes connect channels to maximize output voltage or current
• Fully programmable channels with Output On/Off control
• Simultaneous display of voltage and current settings on all three channels
• High programming and readback resolution of 1 mV / 0.1 mA
• Low ripple, noise, load, and line regulation
• Save and recall up to 40 instrument settings
• USB connector for firmware updates
• Remote sense
• Timer-controlled output function adjustable from 0.1 to 9999.9 s
• Tracking mode maintains a programmed ratio for connected channels
• PC connection/control through RS-232 or USB supporting standard SCPI commands
• Intelligent fan control, energy saving and noise reduction
• Overvoltage (OVP) and overcurrent (OCP) protection
• Keylock function
