Item # 1954
1954 AEMC - THERMAL CAMERA
Item # 1954
1954 AEMC - THERMAL CAMERA
- UM : EA
- Weight: 14.0000

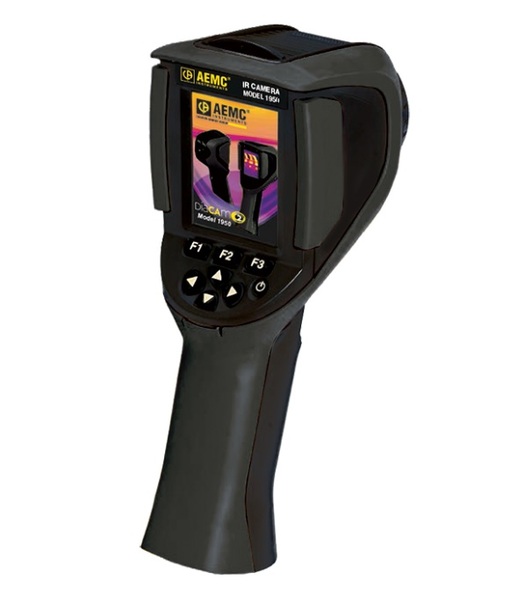

Description: The AEMC 2121.41 Model 1954 Thermal Imaging Infrared Camera, with 120x160 detector resolution, is safe and reliable for real-time non-contact thermal inspection of a selected area and capturing thermograms. It measures temperature from -4 to 482°F (-20 to 250°C) and features a quick startup in under 10 seconds, focus free quality of thermal & digital images, 28°x38° field of view, 2.8" graphic display (480x640 pixels), plus laser pointer. Select point cursor, area cursor, temperature profile, min/max, cursor or isothermal modes. Connect the imager to a compatible AEMC clamp-on meter or multimeter via Bluetooth to add electrical measurements.
Features:
- Resolution of 160 x 120
- Real-time non-contact inspection method
- Diagnose latent malfunctions in advance and anticipate their occurrence
- Analyze electrical maintenance issues
- 38 x 28° field of view with an IFOV spatial resolution of 4.1mrad
- Focus free imaging with automatic brightness control
- 320 x 240 pixel, 2.8" color display
- Exceptional 9 hour battery life
- Captures thermal and digital images simultaneously
- Laser Pointer for accurate target location
- Programmable trigger and cursor functions
- Selectable color palette
- Quick startup in less than 10 seconds
- Built-in user configurable emissivity table
- Accurate temperature measurement over the full range
- Automatic non-uniformity temperature correction
- Verbally record comments to the image using the wireless microphone included
- Wireless Bluetooth connection to AEMC clamp-on meters, multimeters and environmental loggers to record electrical and physical measurements simultaneously with thermograms
- Comprehensive CAmReport software included with all the necessary functions for reliable measurement analysis and report generation
Specifications
