Item # 205

205 AEMC - CAT # 2139.40 POWER CLAMP-ON METER

$375.00 / EA

  • Available Only in Quantities of: 0.00
  • Log in to see if custom discounts apply
205 AEMC - CAT # 2139.40 POWER CLAMP-ON METER
205 AEMC - CAT # 2139.40 POWER CLAMP-ON METER
Click image to enlarge

Item # 205

205 AEMC - CAT # 2139.40 POWER CLAMP-ON METER

  • UM : EA
  • Weight: 9.0000

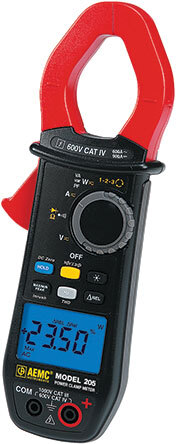

Power Clamp-on Meter 2139.40 - Model 205 (TRMS, 1000VAC/DC, 600AAC/900ADC, Ohms, Continuity, Phase Rotation, Power, THD)

Description: The True RMS Clamp-On Meter 205 measures AC + DC volts and amps, frequency, continuity, resistance and can also perform diode checks. It also measures Power and Power Factor, phase rotation, and THD. A Delta relative function allows new measurements to be compared to a reference value and a MIN/MAX function keeps track of these high and low values.

Features:
• UL94 VI flame retardant self-extinguishing
• 6000-count blue electroluminescent backlit display
• Measures up to 1000VAC (1400V peak), 1400VDC and AC+DC with resolution to 10mV
• Model 205 measures single- and three-phase power (real, reactive, and apparent) up to 600kW with resolution to 1W
• Measures frequency to 20kHz with 0.1Hz resolution
• Auto selects AC or DC voltage measurement
• True InRush®current measurement with 1ms capture
• Jaw opening to 1.33" (34mm); IP54 Rated
• Leads are constructed with a flexible silicone material
