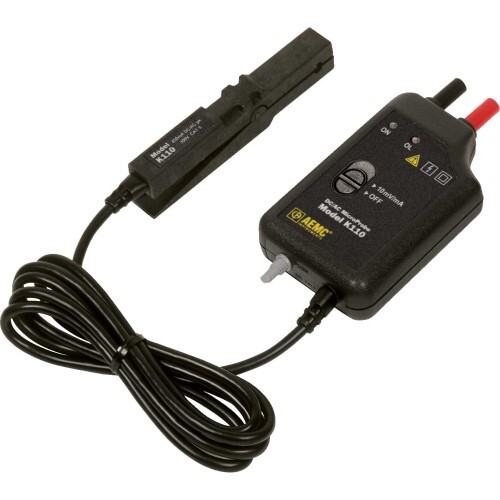

DC/AC MicroProbe Catalog 2111.73  (450mA, 10mV/mA)

Description: The DC/AC Microprobe Catalog 2111.73 measures as low as 100µA AC or DC. The unit has proportional mV output for direct readings on DMMs. The high accuracy 2111.73 is ideal for calibration of current loop process instruments (e.g., 4 to 20mA or 0 to 20mA).

Features:

• Measures extremely low level DC from 100µA
• Outputs signal proportional to total current (DC + AC)
• Low noise
• Ultra-compact size and non-contact clamp-on convenience
• Simple plug-in operation
• Designed for use with DMMs and oscilloscopes
• Accurate display of waveforms
• No range or mode (AC/DC) switching required
• Extended battery life
• Red LED indicated momentary or continuous overload
• Green LED indicates power and battery condition

Applications:

• Industrial process controls (4 to 20mA current loops)
• Electronic circuit design, testing and repair
• Automobile wiring and engine control systems
• Avionics systems maintenance and repair
• Fault and signal location in complex networks
• Ground and leakage current measurement
• Pre-deployment testing of power-conscious equipment
