Item # 211722
2117.22 AEMC - MODEL 503 CLAMP-ON METER DISCONTINUED
Item # 211722
2117.22 AEMC - MODEL 503 CLAMP-ON METER DISCONTINUED
- UM : EA
- Weight: 3.0000

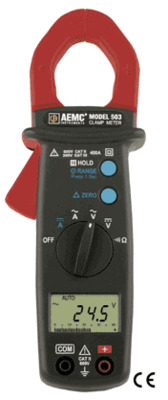

Clamp-On Meter Catalog 2117.22 (AC/DC, 400A AC/DC, 600V AC/DC, Ohms, Continuity)
DISCONTINUED, REPLACED BY 2139.82
Description: The Clamp-on Meter Catalog 2117.22 is a general-purpose professional clamp-on. A strong mechanical case design, quality materials, full ranges and compliance to international safety and quality standards ensure a professional and reliable tool. The Catalog 2117.22 is auto-ranging, and provides the user with AC Volts, DC Volts, AC Amperes, DC Amperes, resistance, and continuity.
The large and complete 4000-count LCD features comprehensive user interface symbols such as a low battery indicator. It is equipped with a Data Hold function, which freezes the measurement. The Catalog 2117.22 is compact for comfortable one-handed operation, and the hooked jaw design is easy to maneuver in crowded wiring and breaker panels. The jaw opening for the Catalog 2117.22 is 1.1" (28mm).
Features:
- Compact size - fits into your pocket
- 400A AC or 400A AC/DC current measurements
- 600V AC/DC volts measurements
- Resistance measurements to 400Ω
- Continuity with beeper below 40Ω
- Hold function to "freeze" readings
- Push-button for easy ADC zeroing
- Large easy-to-read 4000-count display
- 42-segment bargraph
- Includes test leads and a soft carrying pouch
Specifications
