Item # 212115

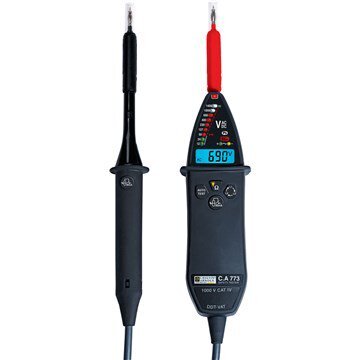

2121.15 AEMC - MODEL C.A. 773 VOLTAGE TESTER
Click image to enlarge
Item # 212115
2121.15 AEMC - MODEL C.A. 773 VOLTAGE TESTER
- UM : EA
- Weight: 6.0000
Features:
- Backlit LCD Display
- Full autotest
- Voltage Detection; LED display: 12VAC = U = 1000VAC; 12VDC = U = 1400VDC
- Frequency: DC, 16.67 to 800Hz
- Detection of stray voltages
- Unipolar phase detection (a single contact)
- Two-pole phase-sequence testing with 2-wire method
- Continuity test with audible and visual indication (R < 100O)
- Complies with EN 61243-3 Ed. 2009 & 2010 & IEC 61010 1000V CATIV
- Detection of live and de-energized AC or DC circuits
- Verify Phase Rotation
- Check continuity
- Verify operation of GFCI outlets and breakers
