Item # 213951
2139.51 - Power Clamp-on Meter
Item # 213951
2139.51 - Power Clamp-on Meter
- UM : EA
- Weight: 9.0000

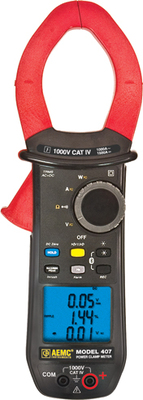

Power Clamp-on Meter 2139.51 - Model 407 (TRMS, 1000V AC/DC, 1000A AC/1500A DC, Ohms, Continuity, Energy, Harmonics, Power, THD, Recording)
Description: In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 407 offers several unequaled functions including:
AC, DC and AC+DC volts, amps and power, True InRush®, Power measurements, Harmonic analysis, Data logging and more.
Features:
• 1000V CAT IV Rated
• UL 94 flame retardant self-extinguishing
• IP54 Rated
• 10,000-count blue electroluminescent backlit display
• Measures up to 1000V AC (1400V peak), 1000V DC and AC+DC with resolution to 10mV
• Measures up to 1000A AC and 1500A DC
• Measures single- and three-phase power (real, reactive and apparent) up to 3MW with resolution to 1W
• Measures frequency to 20kHz with 0.1Hz resolution
• Auto selects AC or DC measurement voltage
• True InRush™ current measurement with 1mS capture
• Records up to 1000 measurements
• Wireless Bluetooth communications
• Jaw opening up to 1.89"
• Leads are constructed with a flexible silicone material
Specifications
