Item # 213983

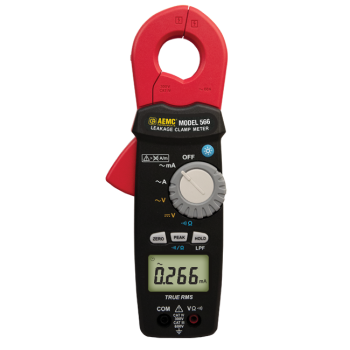

2139.83 AEMC - MODEL 566 CLAMP-ON METER
Item # 213983
2139.83 AEMC - MODEL 566 CLAMP-ON METER
- UM : EA
- Weight: 9.0000
Clamp-On Leakage Current Meter Catalog 2139.83 (TRMS, 6mA, 60mA, 600mA,6A, 60A, 600VAC/DC, Ohms, Continuity)
Description:
The TRMS Clamp-On Leakage Current Meter Model 566 is designed to measure low AC currents and leakage currents in ground conductors. Low currents are measured in the 60mA and 600mA ranges. The high sensitivity of the probe (1µA, 10µA and 100µA) resolution when measuring mA is possible through special jaw construction and critical shielding of the jaws. At low measurement levels, shielding out noise is critical for low sensitivity, accuracy, and stability.
The Model 566 can be used as a standard clamp-on meter measuring to 60Arms, as well as VAC and VDC ranges, resistance and continuity with a buzzer. In mAAC and AAC, the user can activate a low-pass filter (LPF) to ignore all currents other than 50/60Hz. In this mode, only the fundamental signal is measured.
The Model 566 is ergonomic in design and fits well in the hand, facilitating one hand operation. The jaw size is compact yet designed to accommodate the most common conductors up to 0.91" (23mm) in diameter.
Features:
- Check for leakage and locate insulation breakdowns on live circuits.
- Measures leakage current up to 600mA with up to 1µA resolution.
- Measures current up to 600Arms
- Measures up to 600Vac/dc
- Measures Hz on either V or A inputs
- Measures Resistance and Continuity
Specifications
