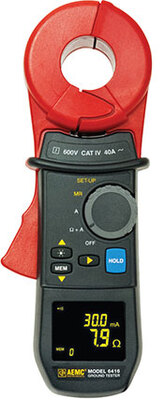

Clamp-On Ground Resistance Tester Catalog No. 2141.02

Description:The Ground Resistance Tester Catalog No. 2141.02 measures ground rod and grid resistance and impedance without the use of auxiliary rods. Clamp-on ground resistance testers can be used in multi-grounded systems without disconnecting or de-energizing the ground system under test it. The Catalog No. 2141.02 simply clamps around the grounding electrode or conductor and measures the resistance to ground. By performing measurements on intact ground systems, the user also verifies the quality of the grounding connections and bonds. Resistance and continuity of grounding loops around pads and buildings may also be measured.

Features:

• Touch voltage is displayed to alert user to potential unsafe conditions
• Large multi-function, bright yellow organic display (OLED) is visible in all lighting conditions
• Selectable test frequency improves accuracy in inductive environments
• Differentiates between loop and ground resistance measurements.
• Data storage (O, A,V and µH with time-stamping): Stores up to 2000 measurements
• Easy clamp opening via a force compensation trigger system with 35mm clamp diameter
• Displays stored measurements on the OLED display or by Bluetooth® to a PC or the AndroidTM based mobile application.
• Alarm function with adjustable set point and buzzer for quick field checks for volts, amps and ohms
• Includes DataView® software for data storage, real-time display, analysis, report generation and system configuration

• Ground electrode system resistance
• Bonding/continuity checks
• Cell tower grounding verification
• Ground measurements on Railroad signaling systems
