215022 | 2150.22 AEMC - MODEL OX5042 W/MN251T KIT

Item # 215022

2150.22 AEMC - MODEL OX5042 W/MN251T KIT

Call for Price

Available Only in Quantities of: 0.00
Log in to see if custom discounts apply

Quantity EA

2150.22 AEMC - MODEL OX5042 W/MN251T KIT

Click image to enlarge

Description

Item # 215022

2150.22 AEMC - MODEL OX5042 W/MN251T KIT

UM : EA
Weight: 28.0000

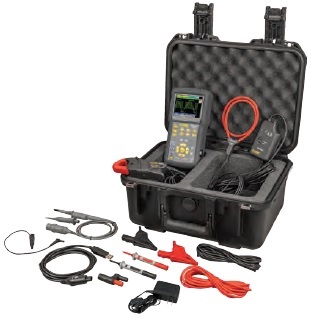

Description: The AEMC compact, shockproof, IP54, Handscope Oscilloscope OX5042-CK KIT (#2150.22) can be comfortably held in one hand. The Handscope is an ergonomically designed instrument equipped with a color screen and LED backlighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use.

Features:

Handscope Portable Oscilloscope Kit with MN251T and MiniFlex 3000-24-1-1

Two isolated channels

40MHz oscilloscope

2 Independent 8000-count TRMS Digital Multimeters

3.5" color LCD screen with LED backlighting

Display voltage and current measurements simultaneously

Integrated interactive multilingual help function

Records up to 2700 measurements

Stores up to 100 screen shots

Rechargeable batteries

2MB recording data storage

Communication via isolated USB SCPI protocol

MN251T AC Current Probe:

Measurement Range: 0.1 to 240A
Frequency Range: 40 to 10kHz

3000-24-1-1 MiniFlex Sensor:

Measures from 0.5Arms to 3000Arms
Accuracy 1% of Reading +- 0.25A
24" Length
