Item # 2190E

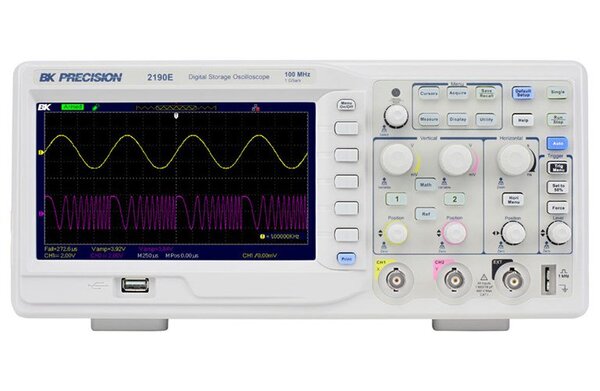

2190E - 100 MHz, 1 GSa/s Digital Storage Oscilloscope
Item # 2190E
2190E - 100 MHz, 1 GSa/s Digital Storage Oscilloscope
- UM : EA
- Weight: 8.5000
Description: The 2190E oscilloscope combines performance and value all in one portable solution. With extensive features this oscilloscope offers powerful tools in a small affordable package.
Features:
• 100 MHz bandwidth, 1 GSa/s sample rate
• Large, 7” widescreen color display with 800 x 480 resolution offers a significantly larger viewing area than typical economy oscilloscopes (5.7”)
• 32 automatic measurements
• FFT plus four additional math functions
• Versatile triggering capabilities including pulse width, line-selectable video, slope, and alternating trigger
• Advanced tools include digital filter with adjustable limits, pass/fail testing, and waveform recorder mode
• 12 different language user interfaces and context sensitive help
• Special EDU mode allows educators to disable Auto set button, Measure menu, and Cursors menu
• PC software that lets you remotely control the digital storage oscilloscope and capture, save, and analyze waveform data
• Front panel USB host port for saving and recalling waveform setups, data, and screen shots from the oscilloscope on to a USB flash drive
• LAN and USBTMC compliant USB device port supporting SCPI commands for remote PC control
• GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
Specifications
