Item # 2516

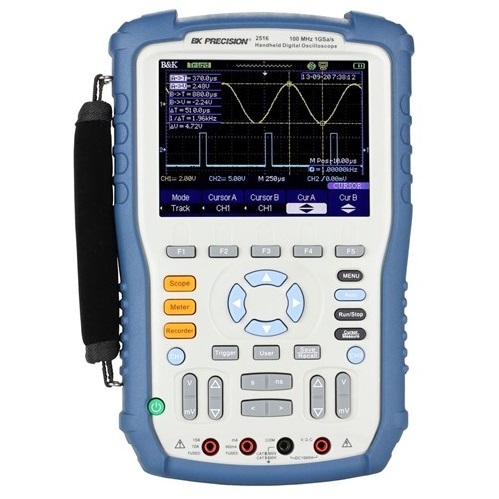

2516 - 100 MHz Isolated Handheld Digital Oscilloscope
Item # 2516
2516 - 100 MHz Isolated Handheld Digital Oscilloscope
- UM : EA
- Weight: 13.0000
Description: The 2510 Series handheld digital storage oscilloscopes provide floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. The 2510 Series allows engineers and technicians to make accurate and safe measurements when the signal reference is floating.
Discontinued
Features:
• 1000 MHz
• 1 GSa/s sample rate
• 2 Isolated 600 V CAT III input channels
• 2 Mpts deep memory
• 1000 V CAT II, 600 V CATIII Safety Rating
• 32 automatic measurements
• FFT plus four additional math functions
• Built-in 6000-count DMM measures DC/AC voltage, DC/AC current, resistance, capacitance, diode, and continuity test
• Dedicated current measurement terminals
• Recorder and trend plot functions to log data
• PC software that lets you remotely control the oscilloscope and capture, save, and analyze waveform data
• USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
• Standard mini-USB device port for remote PC control
Specifications
