Item # 2542C

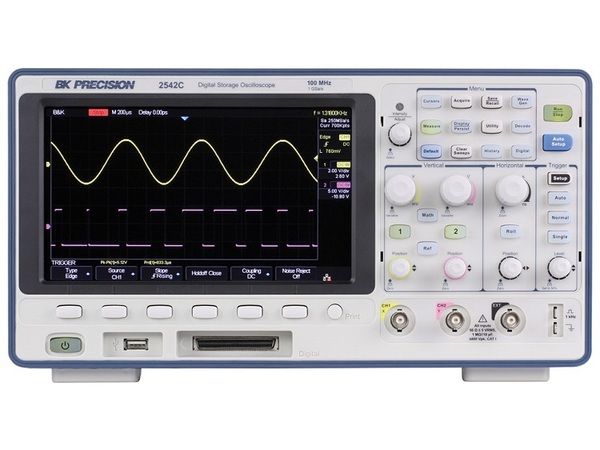

2542C BK PRECISION DIGITAL STORAGE OSCILLOSCOPE
Item # 2542C
2542C BK PRECISION DIGITAL STORAGE OSCILLOSCOPE
- UM : EA
- Weight: 10.0000
Description: The 2542C Digital Storage delivers advanced features and debug capabilities for a wide range of applications at an entry-level price point. With up to 200 MHz bandwidth in a 2-channel configuration, each model offers a maximum sample rate of 1 GSa/s, and a maximum memory depth of 14 Mpts. In addition, these oscilloscopes provide an 8” color display with 256 levels of color grading combined with a high waveform update rate up to 60,000 wfms/s, which allows the instruments to capture infrequent glitches with excellent signal fidelity. These digital oscilloscopes are ideal for applications in design and debugging, service and repair, and education.
Discontinued, limited stock may be available, replaced by 2542C-MSO or 2565B
Features:
- Bandwidth up to 200 MHz
- 1 GSa/s maximum sample rate
- 14 Mpts maximum record length
- Built-in Function and Arbitrary Waveform Generator comes standard on all models
- Large 8" widescreen display with 256-level color gradient
- 60,000 wfms/s maximum waveform capture rate
- Compact footprint and lightweight
- Segmented acquisition history waveform record function (record length up to 80,000 frames)
- Serial triggering comes standard on all models
- Standard LAN and USBTMC-compliant USB device port
