Discontinued, limited stock may be available

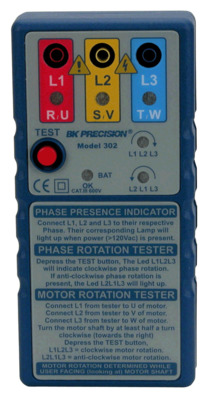

Description: The model 302 is a 3 Phase Presence and Rotation Meter combined with a 3 Phase Motor Rotation Tester. It is the quickest and easiest way for servicing, repairing and electrical maintenance of 3 phase systems and 3 phase rotating machinery. It can be utilized on a 3 Phase Powered System (the supply side) or on a Three Phase Un-powered Motor (the load side) without having to worry about damage to the tester. When utilized on a 3 Phase Powered System, the instrument is then utilized as a 3 Phase Presence and Rotation Indicator. When utilized on a Three Phase Un-powered Motor, the instrument is then utilized as a 3 Phase Motor Rotation Tester. When utilized on a 3 Phase Powered System, this instrument is a rotary field indication instrument which display all three Phase by lighting up it's corresponding LED. It displays the rotation (clockwise or counter-clockwise) on a LED. When utilized on a 3 Phase Un-powered Motor, it is also possible to determine the motor connections U, V, W without a live circuit to avoid subsequent damages of e.g. pumps to reversed motor rotation. It displays the rotation (clockwise or counter-clockwise) on a LED.

Features:

• Indicates Phase Presence
• Indicates Phase Rotation
• Indicates Motor Rotation / Wiring
• Indicates Battery Status
• Phase Rotation and Motor Rotation Indication works from as low as 1Vac
• Small and rugged enclosure
• Phase and Motor Rotation Indicator works from as low as 1Vac
• Color Coded test Leads
• Phase Presence Indication from as low as 100Vac
• Very Low Consumption
• Fused
• Lightweight, Robust & Compact.
• Works from 2 Hz to 400Hz Sine
• IEC/EN 61010-1 CAT III / 600V / CE
