Item # 380193
380193 EXTECH - PASSIVE COMPONENT LCR
$229.99 / EA
- Qty Available: 0
- Available Only in Quantities of: 0.00
- Log in to see if custom discounts apply
Click image to enlarge
Item # 380193
380193 EXTECH - PASSIVE COMPONENT LCR
- UM : EA
- Weight: 1.5650

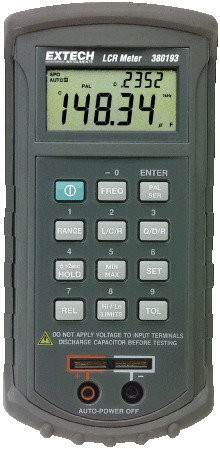

Description: The 380193 is a Passive Component LCR Meter that measures inductance, capacitance, and resistance.
Features:
- Measures Capacitance and Inductance to 0.7% and Resistance to 0.5%
- Simultaneous 20,000/10,000 count display of the primary parameter (L, C or R) with the secondary parameter of Q (quality), D (dissipation) or R (resistance)
- Test frequencies of 120Hz and 1kHz
- Set Hi/Lo limits using absolute values or percentage limits
- Selectable Parallel or Series equivalent circuit
- 4-1/2 digit backlit LCD display provides resolution to 0.1pF, 0.1µH and 0.001½
- Max/Min/Avg recording
- Built-in test fixture or use external test leads
- Open and Short Zero removes unwanted stray impedances from the measurement
- Relative mode with zero reference or user supplied reference
- Built-in RS-232 interface with Windows® 95/98/NT/2000/XP compatible software to display, analyze and store data for later analysis
- Auto power off
- Automatic blown fuse indication
- Powered by 9V battery or optional AC adaptor
- Complete with alligator clip test leads, 9V battery, protective holster, RS-232 cable, and software
Specifications
