Item # 4033

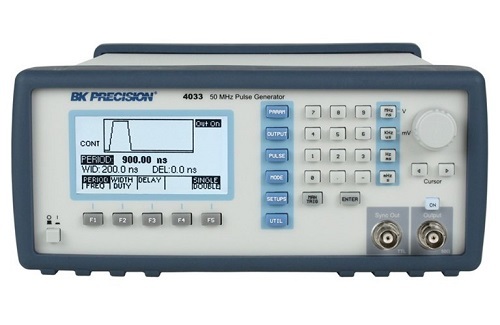

4033 - 50 MHZ PULSE GENERATOR
Item # 4033
4033 - 50 MHZ PULSE GENERATOR
- UM : EA
- Weight: 10.0000
Description: The 4033 and 4034 are high performance programmable pulse generators for testing digital systems and circuits based on TTL, CMOS, or ECL technologies. These instruments generate clean and accurate pulses. All parameters, modes, and functions are programmable via the front panel or remote control commands. Additionally, the pulse generators provide selectable complementary pulse and double pulse generation in continuous, triggered, gated, and counted burst modes.
Features:
• Repetition rate of 0.1 Hz to 50 MHz
• Flexible trigger modes: Continuous, Triggered (internal, external, manual), Gated Burst and External Width
• Pulse width programmable from 10 ns to 10 s
• Pulse delays from 0 ns to 10 s
• Output levels are adjustable from -10 V to +10 V
• Transition times (rise and fall times) variable from 6 ns to 25 ms
• Programmable delay and double pulse
• Store up to 99 different test setups with auto retention of last power down setup
• 10 Vpp into 50 ohm output
• Closed case calibration
• Programmable via GPIB and RS-232
• SCPI compatible
Specifications
