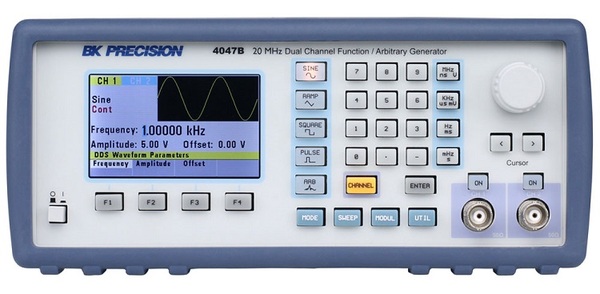

Descriptions: The 4047B Dual Channel Function/Arbitrary Waveform Generator is capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. CH1 and CH2 outputs are fully independent with individual on/off buttons and can both be varied from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit). The generator provides linear and logarithmic sweep capabilities, AM/FM/PM/FSK/PWM modulation, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level. Separate output amplitude and DC offset amplifiers let you set a large DC offset (e.g. ± 4.99 V) with a small amplitude output signal (e.g. 10 mV).  The 4047B’s dual architecture, typically found in more expensive generators only, provides all the benefits of a DDS and a true point-by-point arbitrary waveform generator (AWG), without any limitations imposed by either technology.

Features:

• Dual-channel operation with each channel providing the rated amplitude (10 Vpp) over the entire frequency range
• Sine and square waveforms up to 20 MHz
• True point-by-point 14-bit, 125 MSa/s, 16-kpt arbitrary waveform generator
• Seamless integration with B&K Precision’s waveform editing software WaveXpress, allowing users to generate complex arbitrary waveforms
• Bright color display with waveform preview
• Synchronize the phase of both channels with the push of a button
• AM, FM, PM, FSK, and PWM internal and external modulation capabilities
• Gate and burst mode
• Low-jitter square wave generation for simulating reliable clock signals, generating triggers, or validating serial data buses
• USB interface and SCPI-compliant command set
• Internal/external triggering
• Gate and burst mode
• Built-in counter
• Short circuit protection for resistive and capacitive loads on outputs and overvoltage protection on inputs
