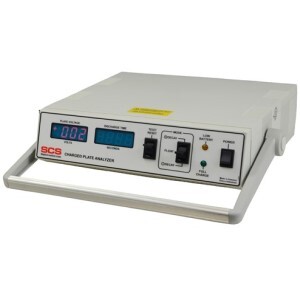

6" x 6" Charged Plate Analyzer

Description: Use to evaluate the performance and functionality of ionizers. Customizable Measurement Capacitence provides assurance that ESD process needs are met in manufacturing and that there is compliance to the requirements of ANSI/ESD S20.20 and EN 61340-5-1 testing per ANSI/ESD STM 3.1.  Discharge thresholds tests the efficiency of an ionizer’s ion production by measuring the amount of time needed to neutralize a positive or negative charge on the isolated conductive plate.  Peak AC tests the offset voltage (balance) between the positive and negative air ions output by an ionizer.  Measurements are made directly at the plate for greater stability and accuracy than charged plate monitors that use field meter technology. Large Signal bandwidth suitable for testing AC technology ionizers.NIST Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.  Meets the requirements of the applicable EC directives. Designed to be battery operated or operated while connected to a line voltage source.

Features:

• Customizable Measurement Capacitance
• Programmable Discharge Time Mode Thresholds (1 to 1000V in 1V Increments)

• Peak AC
• Voltage Follower Technology
• Large Signal Bandwidth: DC to 10 Hz
• CE Marked
• NIST Calibrated
• AC Adapter Included
