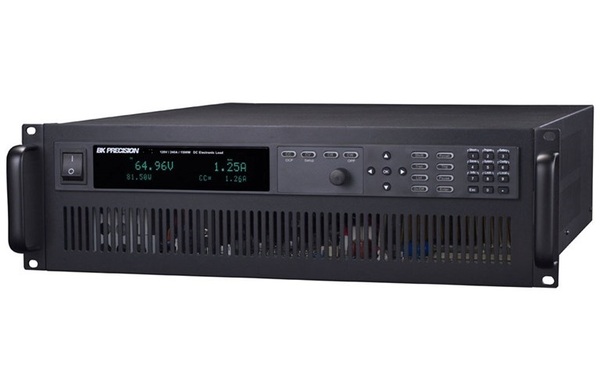

Description: The 8616 programmable DC electronic loads provide the performance of modular system DC electronic loads in a compact benchtop form factor. These DC loads can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

Features:
• Wide voltage and current range, 500 V, 60 A
• 1200 W Power
• CC/CV/CR/CW operating modes
• Transient mode up to 25 kHz
• 16-bit resolution voltage and current measurement
• List mode function
• Adjustable slew rate in CC mode
• Short circuit test
• Built-in battery test function with voltage level, capacity level, and timer stop conditions
• CR-LED mode to simulate the loading behavior of typical LEDs
• Remote voltage sensing to compensate for the effect of voltage drop in wires
• Analog current control and monitoring
• Standard USB (USBTMC-compliant), RS-232, and GPIB interfaces with SCPI protocol support
• OVP/OCP/OPP/OTP and local/remote reverse voltage (LRV/RRV) protection
