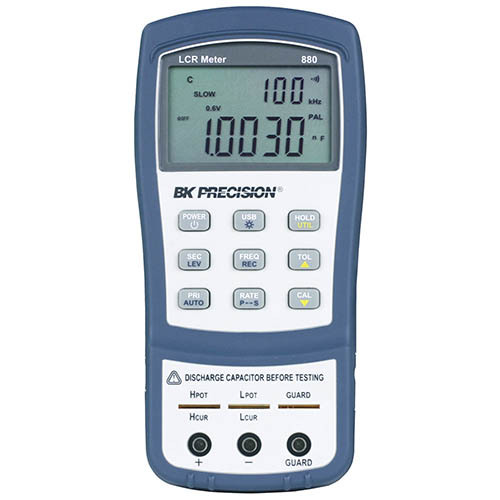

Description: The 878B, 879B, and 880 are handheld LCR meters. Additionally, the 880 offers capabilities typically only found in bench LCR meters such as a 4-terminal configuration, basic measurement accuracy up to 0.1%, test frequencies up to 100 kHz, selectable test signal levels and measurement rate. Fast auto ranging and quick measurement configuration such as measurement parameter and test frequency selection make these meters very simple to operate. The meter also includes handy functions such as data hold, Min/Max/Average recording, tolerance sorting, and relative mode.

Features:

• 40,000 counts resolution on primary and 10,000 counts resolution on secondary display
• L, C, R, and Z (879B & 880 only) primary measurements
• Automatic calculation of secondary parameters D, Q, Theta, ESR (Theta/ESR for 879B &880 only), and DCR (880 only)
• Accuracy up to 0.1% and selectable test frequencies up to 100 kHz (880 only)
• Fast auto range design for rapid, easy component measurements
• Auto detect mode for automatic component type identification and measurement type selection (880 only)
• Relative mode
• Visible and audible tolerance mode
• Backlit display (879B & 880 only)
• Data Hold and Min/Max/Average recording
• USB (Virtual COM) interface
• SCPI compliant commands for remote communication
• Software for datalogging and front panel emulation available as free download
• Configurable power-up-states
• All commonly requested accessories included (880 only) Applications
• Passive component troubleshooting
• Electronic assembly
• Quality control (component sorting)

Ordering Information:

Models 879B and 880 include a 120 V AC adapter as a standard accessory. To include a 230 V AC adapter, order model 879B-220V or 880-220V. AC adapters are optional accessories for the 878B.
