890C - Dual Display Capacitance Meter to 50 mF
Item # 890C
890C - Dual Display Capacitance Meter to 50 mF
- UM : EA
- Weight: 2.0000

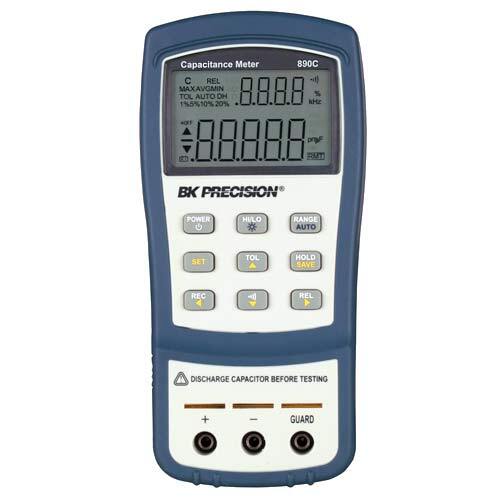

Description: The 830C and 890C are handheld capacitance meters. Straightforward to operate, these meters make measurements quickly and simplify the capacitance sorting process. Unlike other handheld instruments such as LCR meters that make measurements using an AC signal with a specific test frequency, they measure capacitance by applying a constant current that briefly charges, then discharges the connected capacitor. These meters include many handy functions.
Features:
• 0.5% basic accuracy
• 11,000-count
• Measures capacitance up to 200 mF (50 mF for 890C)
• Bright LCD backlight
• Fast auto range design for rapid, easy component measurements
• Supports 25 sets of High/Low limits
• USB (Virtual COM) interface
• SCPI compliant commands for remote communication
• Trouble shooting tools: Hold/Min/Max/Ave, tolerance, relative mode
• Software for data logging and front panel emulation available as free download
Applications:
• Capacitive component troubleshooting
• Electronic assembly
• Component sorting
• Quality control
Ordering Information:
Base model 830C includes a 120 V AC adapter as a standard accessory. AC adapters are optional accessories for the 890C.
