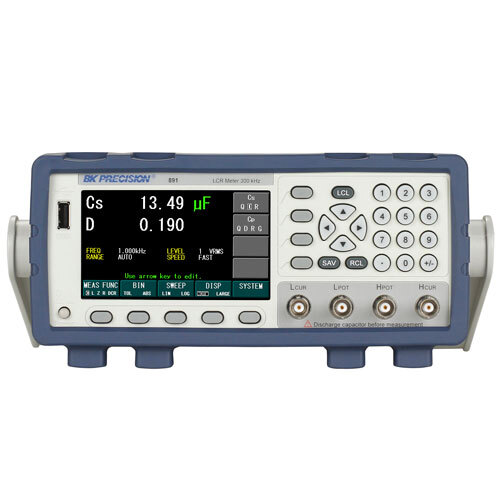

Description: The 891 Bench LCR meter is capable of measuring inductors, capacitors, and resistors at DC or from 20 Hz to 300 kHz. The instrument's convenient bin sorting function and frequency sweep function enables quick sorting and characterization of components. Good for performing daily operations in production, quality control, and laboratory environments.

Features:
• Measurement parameters: L, C, R, Z, G, B, Y, D, Q, θ, DCR
• 0.05% best impedance accuracy
• Fully adjustable test frequency from 20 Hz to 300 kHz with 4-digit resolution
• 0.5 Vrms and 1 Vrms selectable test levels
• Large 4.3" color display
• 2U half-rack form factor is suitable for bench or rack mount installation.
• Adjustable measurement speed for fast readout or better accuracy
• 300-point linear and logarithmic sweep function
• Bin sorting function (9 primary, one secondary, and one out-of-spec bin)
• Save/recall up to 100 setups (10 internal) including 1000 measurements and screenshots
• Standard USB (Virtual COM), GPIB, and LAN interface for remote control
