Item # 9115AT

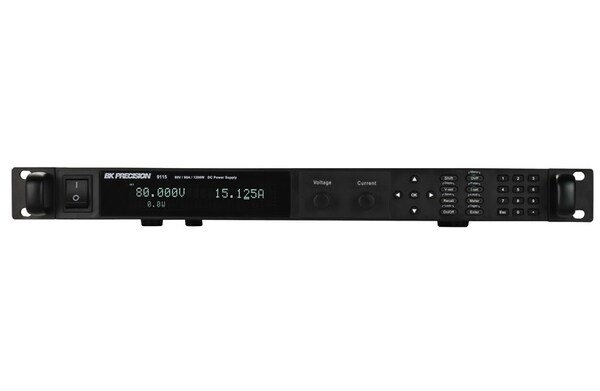

9115-AT - 1200W Multi-Range 80V/60A DC POWER SUPPLY
Item # 9115AT
9115-AT - 1200W Multi-Range 80V/60A DC POWER SUPPLY
- UM : EA
- Weight: 27.0000
Description: Any 9115 Series model can replace several supplies on your bench or in your rack.
For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI commands.
The 9115-AT provides automotive power test waveforms compliant to DIN 40839 and ISO 16750-2 standards that can simulate common test conditions for electrical and electronic devices installed in automobiles.
Features:
• Multi-ranging operation (output up to max power rating within maximum voltage and current rating)
• Compact, high density, 1U rackmount form factor
• 0-80 V Voltage and 0-60 A Current
• High programming and readback resolution
• Adjustable voltage rise and fall times
• Automatically recalculate voltage and current limits for each setting
• Sequence programming (internal list mode for 9115, 9115-AT, and 9116)
• Store and recall up to 100 instrument settings
• Standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI commands for remote control
• Analog interface with control and monitoring functions
• Remote sense
• Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
• Softpanel for remote control, test sequence generation, and data logging. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators
Specifications
