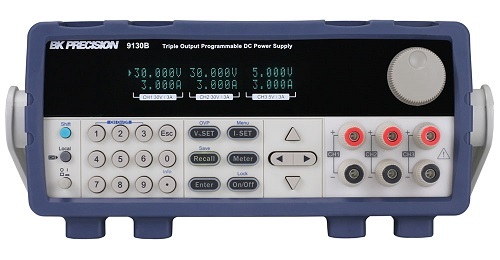

Description: The BK Precision 9130B Programmable Triple-Output DC Power Supply, (2)30V/3A, (1)5V/3A, 195W, 120VAC Line Input features isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. The front panel keys and rotary knob with convenient cursors let users quickly set voltage and current values, and up to 36 instrument settings can be stored and recalled. The standard USB (USBTMC-compliant), RS232, and GPIB interfaces supporting SCPI commands can be used to remotely control the power supplies via a PC. Users can control the power supply, execute test sequences or log measurements using the provided PC software application.

Discontinued, replaced by 9130C

Features:

• Output Voltage: 0 - 30V(2), 0 - 5V(1)
• Output Current: 0-3A
• Max Power: 195 W
• Input Current: 110VAC, 47 Hz - 63 Hz
• Dimensions (WxHxD) 8.45 in. x 3.47 in. x 13.96 in.
• Three independent and electrically isolated outputs
• Standard USB (USBTMC-compliant), RS232, and GPIB interfaces
• Displays voltage and current settings for all three channels simultaneously
• Low noise, linear regulation
• High programming and readback resolution of 1 mV / 1 mA
• Remote Sense on all channels
• Store/recall up to 36 instrument settings
• Series, parallel, and tracking modes
