Item # 9801

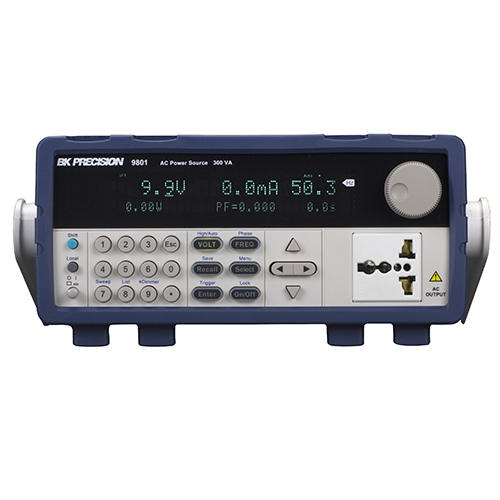

9801 - AC Power Source 300 VA
Item # 9801
9801 - AC Power Source 300 VA
- UM : EA
- Weight: 28.0000
Description: The 9800 Series is both a programmable AC source and measurement tool. These fully programmable linear AC sources have universal line output terminals on the front, an output connector on the rear and a bright VFD display. The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.
Features:
• 0 to 300 V, low distortion AC power source with models delivering a maximum of 1500 VA, 12 Arms / 48 Apeak
• Output frequency adjustable from 45 Hz – 500 Hz
• 0-300 V Voltage, 0-3 A Current, 300 VA Max Power
• Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 - 300 V
• Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time
• Adjustable phase angle control
• Built-in PLD and dimmer simulation
• Voltage and frequency sweep mode
• Downloadable LabVIEW driver and soft panel software for remote control
• Standard USB (USBTMC-compliant), RS232, and LAN interfaces
• Pre-compliance testing for voltage dips and frequency simulation according to IEC61000-4-11 / 4-14 / 4-28
