Item # CT2676ARA
CT2676ARA - CAL TEST PASSIVE VOLTAGE OSCILLOSCOPE PROBE
Call for Price
- Minimum Order Quantity: 1.00
- Available Only in Quantities of: 0.00
- Log in to see if custom discounts apply
Item # CT2676ARA
CT2676ARA - CAL TEST PASSIVE VOLTAGE OSCILLOSCOPE PROBE
- UM : EA
- Weight: 0.2000

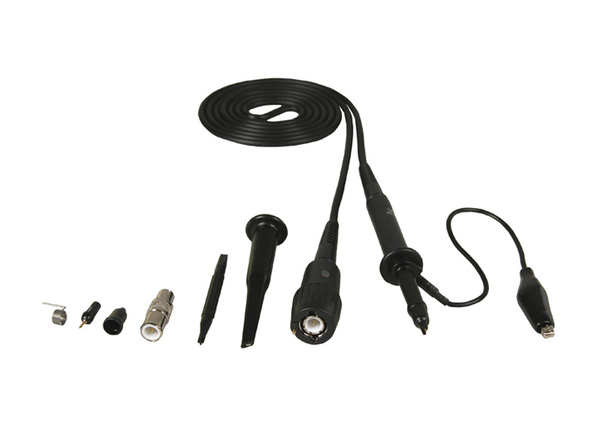

Description: The CT2676ARA is a general purpose 100 MHz, 10x fixed attenuation probe,readout actuator pin on the BNC connector, 5mm, and a cable length of 1.2M. This high performance 5mm Passive Voltage Oscilloscope probe is an excellent replacement probe for all makes and models of oscilloscopes.
Voltage Probes are used to test equipment and measure currents and voltages. Probes are an integral part of any electrical power testing toolbox to ensure accurate measurements, reliability, and safety.
Features:
- 100 MHz (-3 dB) bandwidth
- High impedance input (10 MΩ/16 pF)
- 10–35 pF compensation range
- 300 V CAT II
- Snap-Locking Sprung Hook
- Easily replaceable tip
- Large accessory set
- Meets IEC 61010-031
- RoHS compliant
Accessories included: 15 cm Ground Lead, Replacement Tip, Black Snap-on Sprung Hook, Tip Insulator, IC Tip, BNC Adapter, Probe Tip Ground, Trimmer Tool & Identifier Rings
Specifications
