Item # GSP810

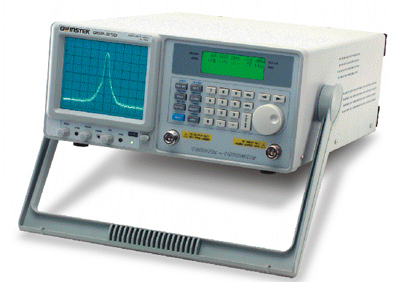

GSP-810 - INSTEK SPECTRUM ANALYZER
Call for Price
- Minimum Order Quantity: 1.00
- Available Only in Quantities of: 0.00
- Log in to see if custom discounts apply
Click image to enlarge
Item # GSP810
GSP-810 - INSTEK SPECTRUM ANALYZER
- UM : EA
- Weight: 19.0000
DISCONTINUED, Replaced by GSP-730
Features:
- Frequency Range: 150kHz ~1GHz
- Fully Digital Phase Locked Loop Technique Design
- High Frequency Stability:±10ppm
- High Resolution of Span to Measure the More Detailed Signal: Zero, 2kHz~100MHz/div
- RBW : 3K, 30k, 220k, 4MHz
- High Input Protection Level : +30dBm,±25VDC
- Reference Level Range : -30dBm~ +20dBm
- Good Noise Floor Performance: -95dBm @30kHz, -100dBm Typical @220kHz RBW
- Two Markers for Absolute and Relative Measurement
- Functions: Max. Hold, Average (2~32 Traces), Freeze, Peak Search, Marker to Center Functions
- 9 Memories of Save/Recall
- RS-232C Interface and Software to get Trace from GSP-810 to PC
- Options: Tracking Generator, Power Meter, Remote Control Software
Specifications
×
