Item # MDL002

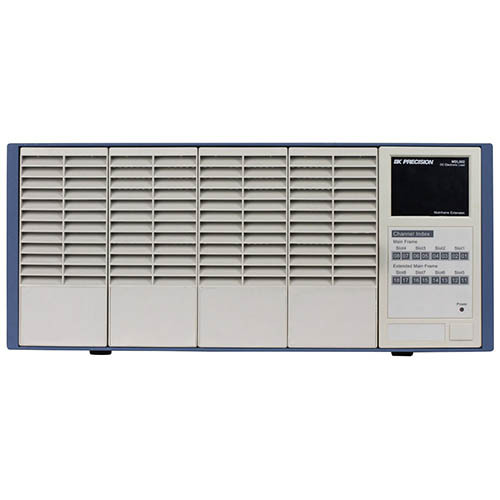

MDL002 - Mainframe extension for MDL load modules
Item # MDL002
MDL002 - Mainframe extension for MDL load modules
- UM : EA
- Weight: 48.0000
Description: The MDL Series is a multi-channel modular programmable electronic load system. Nine different models of programmable DC loads ranging in power from 200 W to 600 W provide users the flexibility to test a wide range of power sources from multi-output AC/DC power supplies to batteries, fuel cells, and photovoltaic arrays.The mainframe has four slots that can be configured with any assortment of the modules up to 2400 W (up to 4800 W with mainframe extension).
Features:
• Model MDL002 offers up to 2400 W Power
• Support for up to 4 modules/8 channels or 8 modules/16 channels with mainframe extension
• Transient mode up to 25 kHz
• Synchronous Load on/off function
• Adjustable slew rate in CC mode
• Constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CW), and constant impedance (CZ) modes
• Standard LAN, GPIB, USB, and RS-232 interfaces with USBTMC/SCPI protocol support
• Short circuit test
• Built-in 16-bit resolution voltage and current measurement (0.1 mV, 0.01 mA)
• Remote voltage sensing to compensate for the effect of voltage drop in wires
• Operate identical modules in parallel mode for high current applications
• OVP/OCP/OPP/OTP and reverse voltage protection
Specifications
