Item # MF30001021
MF 3000-10-2-1 AEMC - MINIFLEX® DISCONTINUED
Click image to enlarge
Item # MF30001021
MF 3000-10-2-1 AEMC - MINIFLEX® DISCONTINUED
- UM : EA
- Weight: 4.0000

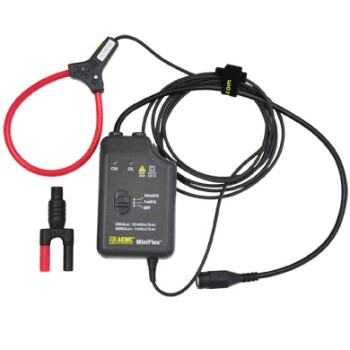

MiniFlex® 300/3000A, 10", 10mV/1mV/A
DISCONTINUED, limited stock
Significantly more compact than the majority of the sensors on the market, the MiniFlex® sensor can be used for measurements in confined spaces or places where access is difficult.
The Model MF 3000-10-2-1 has a 10" sensor length and is equipped with banana or BNC connector and can be connected directly to any multimeter, wattmeter or logger for effective measurements at the standard frequencies.
Features:
- Measures from 0.5Arms to 3000Arms
- Accuracy 1% of Reading ± 0.2A
- TRMS measurements when connected to a TRMS instrument
- No core saturation or damage if overloaded
- Overrange LED for measurement circuitry
- EN 61010; 1000V CAT III; 600V CAT IV; CE Mark
- 20kHz frequency response
- Low phase shift for power measurements
- Insensitive to DC, measures only
- AC component on DC + AC signals
- Excellent linearity
Applications:
- Power measurements
- Measurements on switchboards
- Measurements on thyristors
- Switching measurements (disconnecting switch, etc.)
- Display of control signals
Specifications
Alternate Products
×
