Item # MG325

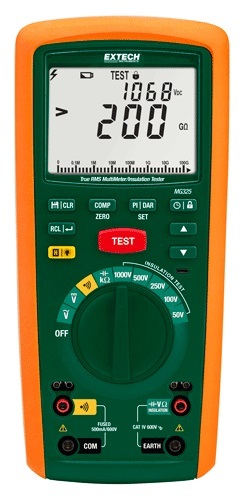

MG325 EXTECH INSULATION TESTER
Call for Price
- Qty Available: 0
- Available Only in Quantities of: 0.00
- Log in to see if custom discounts apply
Click image to enlarge
Item # MG325
MG325 EXTECH INSULATION TESTER
- UM : EA
- Weight: 2.2050
Description: The Extech MG325 combines a high-resistance insulation tester and full-featured DMM into a single instrument. Manually store and recall up to 99 insulation or multimeter readings,or freeze readings with the Data Hold function. Use under any lighting conditions—10,000 count backlit, digital display with analog bargraph, and low-battery indicator.
Multimeter functions include True RMS AC/DC voltage, resistance, capacitance, and frequency measurements, with an audible continuity alarm, and visual high voltage and overload indicators.
Multimeter functions include True RMS AC/DC voltage, resistance, capacitance, and frequency measurements, with an audible continuity alarm, and visual high voltage and overload indicators.
Features:
- Measure Insulation Resistance to 200G
- 5 Test Voltage ranges from 50 to 1000 V
- Polarization Index (PI) and Dielectric Absorption Ratio measurements (DAR)
- Low Resistance measurement with Zero function
- Programmable Timer feature sets the duration of test
- Comparison Mode allows user to set the Pass/Fail values for insulation measurements
- Step Voltage (10% steps at 50% to 120% of range)
- Auto-discharge of voltage test signal
- Lock Power On Function for hands-free operation
- Manually store/recall up to 99 readings
- Backlit 10,000 count display with analog bargraph
Specifications
×
