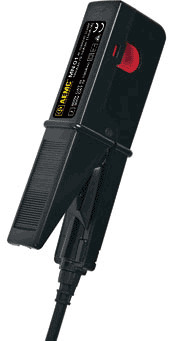

AC Current Probe Model MN01 (150A, 1mA/A, Lead)

Description: Small and compact, the AC Current Probe Model MN01 is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications. If there is a current in the conductor clamped, the Model MN01 is protected against overvoltages during disconnection from the measurement instrument.

Features:

• Small, compact size
• Measurement range of 2 to 150AAC
• Jaw opening accommodates conductors up to 0.39" diameter
• Designed for DMMs, loggers, recorders and oscilloscopes
• 40Hz to 10kHz response
• 1mAAC/AAC output signals
• Designed to EN 61010, 600V CAT III safety standard

Applications:

• Measuring in breaker panels
• Industrial loads
• HVAC
• Residential and commercial sites
• Data logging/recording
