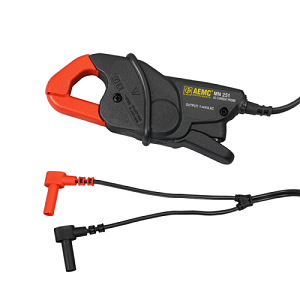

AC Current Probe Model MN251  (240A, 1mV/A, Lead)

Description: The MN251 is a general purpose AC current probe with voltage output. It is designed for use with DMMs or with measuring instruments with voltage inputs. These probes permit the measurement or recording of current with instruments without current ranges. The voltage output is proportional to the current measured (through the jaws). The MN251 offers a voltage output of 1mV per Amp measured. The MN251 has integral 5 ft (1.5m) leads terminated by shrouded banana plugs.

Discontinued, limited stock may be available, replaced by 2513.05 or 2116.26

Features:

• Small, compact size
• Large jaw opening accommodated conductors up to 250kcmil
• Designed for DMMs, loggers, recorders and oscilloscopes
• Conforms to EN 61010, 600V CAT III

Applications:

• Measuring in breaker panels
• Industrial loads
• HVAC
• Residential and commercial sites
• 5A secondary current transformers (CTs) monitoring
