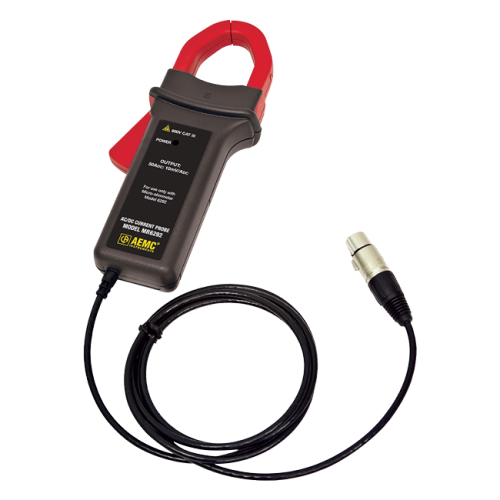

AC/DC Current Probe 2129.86 - Model MR6292 (for use only w/Model 6292)
The AC/DC Current Probe Model MR6292 is an accessory for the Micro-Ohmmeter Model 6292.
The Model MR6292 probe is required for using the Model 6292 to take measurements in BSG (both sides grounded) mode. The probe has a proportional mV output for direct reading on the Model 6292.

Specs

• Measurement Range 1 to 50ADC
• Accuracy 1 to 50ADC: 1.5% reading ± 0.2A
• Output Signal 10mV/ADC
• Load Impedance >100kO/100pF
• Insertion Impedance 0.39mO @ 50Hz, 58mO @1000Hz
• Working Voltage 600Wrms
• Influence of Adjacent Conductor < 10mA/A at 50Hz at 23mm from the probe
• Influence of Conductor in Jaw Opening 0.5% reading
• Power Source Powered by Micro-Ohmmeter Model 6292
• Jaw Opening 1.2"
• Maximum Cable Diameter One 1.18" (30mm) or two 0.95” (24mm) or two bus bars 1.2 x 0.4" (31.5 x 10mm)
• Dimensions 8.8 x 3.82 x 1.73" (224 x 97 x 44mm)
• Weight 15oz
• Output 4-conductor shielded cable with 5-pin XLR connector
• Polution 2
• Electrical EN 61010-2-32, 600V CAT III
