Item # PQ3450

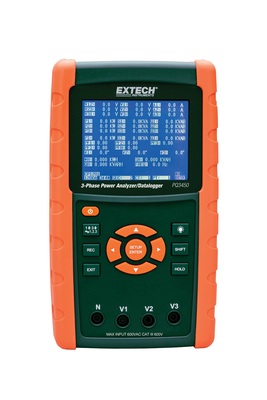

PQ3450 - 3-PHASE DIGITAL POWER ANALYZER

$1,999.00 / EA

  • Qty Available: 1
  • Available Only in Quantities of: 0.00
  • Log in to see if custom discounts apply
PQ3450 - 3-PHASE DIGITAL POWER ANALYZER
PQ3450 - 3-PHASE DIGITAL POWER ANALYZER
Click image to enlarge

Item # PQ3450

PQ3450 - 3-PHASE DIGITAL POWER ANALYZER

  • UM : EA
  • Weight: 5.0000

Datalogging Power Analyzer (up to 30,000 sets of measurements)

Features:

  • Large dot-matrix, sun-readable, numerical, backlit LCD with easy-to-use onscreen menu
  • Full system analysis with up to 35 parameters:
    • V (phase-to-phase), V (phase-to-ground)
    • A (phase-to-ground)
    • KW / KVA / KVAR / PF (phase)
    • KW / KVA / KVAR / PF (system)
    • KWH / KVAH / KVARH / PFH (system)
    • Phase angle
  • Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes
  • Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
  • Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
  • Wide sampling rate range (2 seconds to 2 hours)
  • Built-in Clock and Calendar

Specifications
