Item # PST3201

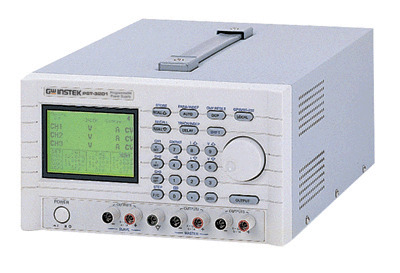

PST-3201 INSTEK DC POWER SUPPLY
Click image to enlarge
Item # PST3201
PST-3201 INSTEK DC POWER SUPPLY
- UM : EA
- Weight: 22.5000
Description: Programmable Power Supply controlled by a MPU that can be connect RS-232 or GPIB to a computer for auto-testing and control. The voltage and current are completely controlled by software calibration with high resolution and accuracy. The software also sets the function of Over Voltage Protection and Over Current Protection.
Features:
- Digitized Programmable Interface
- High Resolution 10mV, 1mA
- 192 x 128 LCD Display (Displays Settings and Measuring Results Simultaneously)
- Over-Voltage, Over-Current, Over Temperature Protection
- Intelligent Fan Control (Changes by Output Power)
- 100 Sets Memory
- Auto Step Running With Time Setting
- Auto Series and Parallel Function
- Labview Driver
- Standard Interface: RS-232C
- Optional Interface: GPIB (IEEE-488.2)
- Optional European Jack Type Terminal
Specifications
×
