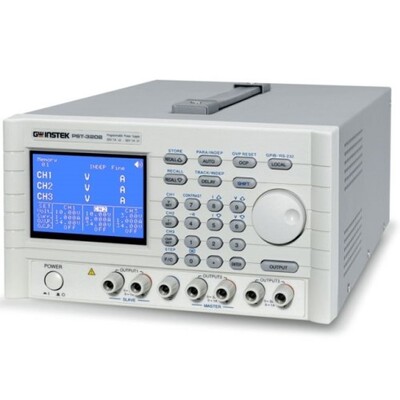

158W Programmable D.C. Power Supply

Description:The PST-Series are 3-channel, 96 or 158W, programmable linear DC power supply. OVP, OCP, and OTP protect the PST-Series and their load from unexpected conditions. High resolution is maintained at 10mV, 1mA. Large 192 x 128 LCD panel with simultaneous output/parameter view and automatically regulated cooling fan for low noise provide comfortable operation. Configuration is simplified with output setting store/recall function, automatic series/parallel operation, and automatic step running for continuous testing. GPIB interface provide remote control and ATE software development capability. The versatile PST-Series is ideal for applications requiring high resolution, multiple output, and automated operation such as in production testing and rack mounting system.

Features:

• Digitized programmable interface, high resolution 10mV, 1mA
• 192 x 128 LCD display, simultaneously
• Over-voltage, over-current, over temperature protection
• Intelligent fan control (changes by output power)
• 100 Sets memory
• Auto step running with timer
• Provided auto series and parallel function
• Labview driver
• Standard interface: RS-232C
• GPIB (IEEE-488.2)
• Optional European jack type terminal
