Item # PVS10005

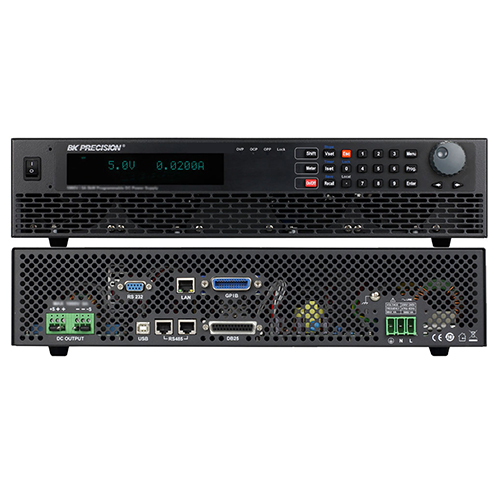

PVS10005 - 1,000 V / 5 A / 5 kW DC Power Supply
Item # PVS10005
PVS10005 - 1,000 V / 5 A / 5 kW DC Power Supply
- UM : EA
- Weight: 42.0000
Description: The PVS10005 programmable DC power supply offers clean output power up to 5.1 kW, and excellent regulation in an industry-leading 2U package. The PVS Series is well suited for both bench use and ATE systems integration, R&D, design verification, production test, and high voltage testing. In particular, the low-noise characteristic of the PVS Series makes these instruments ideal for motor inverter testing.
Features:
• Compact, high power density, 2U package
• Output up to 1000V/5A (PVS10005)
• Convenient single-phase AC input configuration
• Bright VFD display
• High voltage and current resolution of 100 mV, 0.1 mA (PVS10005)
• Fast transient response time of = 0.5 ms
• Adjustable voltage and current slope (rise and fall times)
• List mode: 9 user-defined programs with up to 100 programmable steps each
• Built-in SAS function for storage of up to 16 I-V curves with Voc, Isc, Vmp, and Imp parameters and 1024-point table
• Standard USB (virtual COM), RS232, GPIB and LAN interfaces supporting SCPI commands
• External analog programming and monitoring interface
• LabVIEW driver and softpanel available for remote control, test sequence generation, and datalogging Solar Array Simulation (SAS) Software Option
• Ideal for testing PV and motor inverters
• Simulate I-V curves under different weather conditions while validating the solar inverter's MPPT algorithm
• Test to EN50530 and Sandia Labs standards
• Monitors and logs real-time voltage, current, power, MPPT efficiency, and average MPPT efficiency
• User-definable irradiance profile
Specifications
