Item # SL40

SL40 AEMC - SIMPLE LOGGER®

$109.00 / EA

  • Available Only in Quantities of: 0.00
  • Log in to see if custom discounts apply
SL40 AEMC - SIMPLE LOGGER®
SL40 AEMC - SIMPLE LOGGER®
Click image to enlarge

Item # SL40

SL40 AEMC - SIMPLE LOGGER®

  • UM : EA
  • Weight: 4.0000

(TEMPERATURE, RTD)

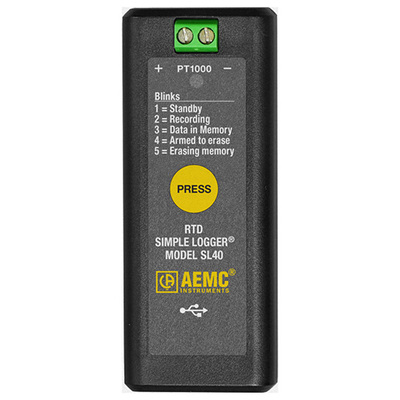

Description: The AEMC Instruments Model SL40 Simple Logger® is a small one channel recording device powered by two AA batteries or by 5V using the USB interface cable supplied. The input is configured to measure temperature from two-wire 1k Platinum RTDs and facilitated by two screw terminals. Sample rate is 16/sec with a storage rate of once per second of the average of all the samples. Application software is included with the unit by plugging it into your computer using the USB cable and downloading it from our web site. Scaling units of measure and recording length can be set through the software. Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed.

The main advantage of the SL40 data logger is its ability to begin recording with only the need to configure the length of time for the recording. A simple one button operation is all you need. The front panel LED alerts the operator of the logger’s status.

Limited Stock

Features:

  • Input: RTD -148-1022°F (-70-550°C)
  • Single Channel
  • Simple one button operation
  • Quick two wire input connection
  • User configurable scaling, units of measure and recording length and more
  • Stores up to four million measurements
  • Data analysis software included
  • Software provides real-time trend graph display, data download, analysis and report generation
  • Micro-B USB cable included

Specifications

Alternate Products

2156.40 AEMC - MODEL SL40 SIMPLE LOGGER

215640

  • 2156.40 AEMC - MODEL SL40 SIMPLE LOGGER
  • $109.00 / EA
