Item # XLN10014

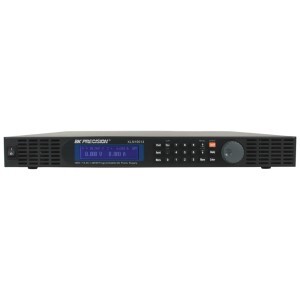

XLN10014 - 100V / 14A 1.44kW Programmable DC Power Supply
Item # XLN10014
XLN10014 - 100V / 14A 1.44kW Programmable DC Power Supply
- UM : EA
- Weight: 27.0000
Description: The XLN series of programmable DC power supplies delivers up to 1560 watts of clean power on a single output. They were designed to meet the needs of both system integrators and benchtop users. The XLN series is perfectly suited for ATE systems integration, product design and development, product QC and burn-in testing, production, electro-plating and other applications requiring high, reliable power.
Features:
• Compact, high density, 1U package
• USB and RS485 interface (standard)
• XLN10014 0-100V Voltage, 0-14.4A Current
• -GL versions add GPIB and LAN interfaces
• External analog programming interface
• Easy to configure master/slave mode for series & parallel connection of up to 4 units
• Built-in voltage and current meters displaying setting and output values concurrently
• Control up to 30 power supplies from one PC synchronized via the RS485 interface
• Application software providing remote control capabilities included
• Programmable voltage and current slew rate allow for "soft starting" of loads
• LabVIEW (TM) drivers available
• 5 V/1 A fixed output for auxiliary output (models XLN3640, XLN6024, XLN8018, and XLN10014 only)
Ordering Information:
For GPIB and LAN interface support, order -GL version of model.
Specifications
