Item # 885

885 B&K, LCR/ESR METER W/ SMD PROBE

$624.00 / EA

  • Available Only in Quantities of: 0.00
  • Log in to see if custom discounts apply
885 B&K, LCR/ESR METER W/ SMD PROBE
885 B&K, LCR/ESR METER W/ SMD PROBE
Click image to enlarge

Item # 885

885 B&K, LCR/ESR METER W/ SMD PROBE

  • UM : EA
  • Weight: 0.0026

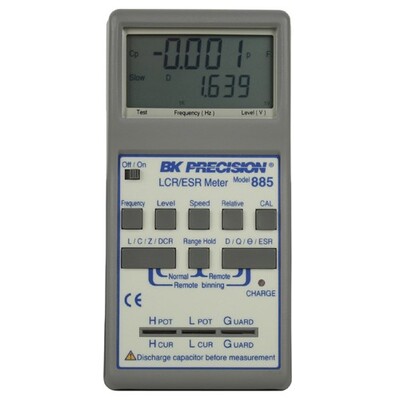

Description: The Model 885 Synthesized In Circuit LCR/ESR Meter is the first handheld meter of this type on the market, with a wide range of test frequencies up to 10kHz and many measurement parameters including Z, L, C, DCR, ESR, D, and Qas well. The 885 is designed for both component evaluation on the production line and fundamental impedance testing for bench top applications. With a built in direct test fixture, you can test the lead components very easily. The optional 4 wire test clip can give a convenient connection to larger components and assemblies with the accuracy of 4 wire testing. The LCR meters offer fast, reliable, and versatile testing at low cost. Measurement parameters: Z, L, C, DCR, ESR, D, Q, and Test conditions: 100Hz, 120Hz, 1kHz, 10kHz, 1Vrms, 0.25Vrms, 0.05Vrms

Features:

  • 0.5% basic accuracy
  • Dual LCD display
  • SMD Surface Mount
  • Tweezer Probe included
  • Very quick response, user friendly
  • Fully auto/manual selection
  • DC resistance measurement
  • Rechargeable battery / AC powered
  • Infrared RS232 interface capability

Specifications
